Floating Ball Valve Class 150~300

Floating Ball Valve Class 150~300 Details :
Standards compliance

Face to face(end to end)
  ANSI B16.10,API 6D
Flanged connection
2"~24" to ANSI B16.5
  Fire-safe
API 607,API 6FA
Test and inspection
API 598,API 6D
  Butt welded end
ANSI B16.25
Bolted bonnet, Two-piece Body, Floating Ball
Full or Reduced bore, Blowout Proof Stem
Fire safe and Anti static
Stainless steel ball
ASTM A216 WCB,A351 CF8,A351 CF8M,
A351 CF3,A351 CF3M,A351 CN7M
Materials
Part name
Material
Handle
Carbon steel
Lock nut
Carbon steel
Gland nut
Carbon steel
Thrust washer
PTFE/NYLON
Gland bush
Stainless steel
Stem
Stainless steel
Part name
WCB
LCB
Stud and nut
A193 Gr B7/A194 Gr 2H
A320 Gr L7/A194 Gr 4
Packing
Graphite/ptfe
Graphite/ptfe
Ball seat
PTFE/RPTFE/NYLON
SPTFE/RPTFE/NYLON
Gasket
Grafoil/spiral wound
Grafoil/spiral wound
Ball
A182 F6a
A182 F304
R-body
A216 Gr WCB
A352 Gr LCB
L-body
A216 Gr WCB
A352 Gr LCB
Part name
CF8
CF8M
Stud and nut
A193 Gr B16/A194 Gr 4/7
A193 Gr B7/A194 Gr 2H
Packing
Graphite/ptfe
Graphite/ptfe
Ball seat
PTFE/RPTFE/NYLON
PTFE/RPTFE/NYLON
Gasket
Grafoil/spiral wound
Grafoil/spiral wound
Ball
A182 F304
A182 F316
R-body
A351 Gr CF8
A351 Gr CF8M
L-body
A351 Gr CF8
A351 Gr CF8M

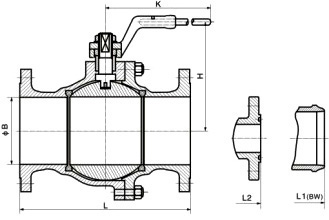

CLASS 150~300 FLOATING BALL VALVE
Dimensions
Class 150
Size
inch
1/2
3/4
1
1-1/2
2
2-1/2
3
4
6
8
L-RF
mm
108
117
127
165
178
191
203
229
394
457
L1-BW
mm
140
152
165
190
216
241
283
305
457
521
L2-RTJ
mm
-
-
140
178
191
203
216
241
406
470
B
mm
13
19
25
38
51
64
76
102
152
203
H
mm
65
70
80
95
110
135
145
170
235
275
K
mm
150
155
160
180
200
225
325
350
500
600
WT.
Kg
3
4
5
8
12
21
26
43
80
155
Dimensions
Class 300
Size
inch
1/2
3/4
1
1-1/2
2
2-1/2
3
4
6
8
L-RF
mm
140
152
165
190
216
241
283
305
403
502
L1-BW
mm
140
152
165
191
216
241
283
305
457
521
L2-RTJ
mm
151
165
178
203
232
257
298
321
419
518
B
mm
13
19
25
38
51
64
76
102
152
203
H
mm
70
85
90
105
120
145
160
195
250
290
K
mm
155
160
180
200
225
325
350
500
600
700
WT.
Kg
3
5
7
13
15
28
32
55
105
170
Any kind of Ball Valve, Brass Ball Valve, Floating Ball Valve can be developed and supplied exactly as per customer specifications in drawing.
